Louisville Zoo Hellbender Salamander System

Purpose-Built Life Support for Conservation Breeding

The Louisville Zoo is committed to the conservation and repopulation of threatened and vulnerable species, including hellbenders, large aquatic salamanders native to cool, flowing freshwater ecosystems. Supporting a successful captive breeding program requires precise control over water quality, temperature, hydraulics, and source-water conditions while also providing an efficient system for husbandry staff to operate and maintain.

Working with Satchell Engineering & Associates, Integrated-Aqua provided a custom Life Support System (LSS) for an eight-tank hellbender breeding system located within the Zoo’s back-of-house facilities. The system was engineered around the biological requirements of the animals, the workflow of the husbandry team, the physical constraints of the facility, and the project budget.

The Challenge

The Louisville Zoo required a compact aquatic system capable of recreating key characteristics of the gentle river environments inhabited by hellbenders while maintaining highly controlled water conditions suitable for conservation breeding.

The system needed to provide reliable mechanical and biological filtration, UV sterilization, precise temperature management, and controlled water movement designed to support natural behaviors, including egg-laying. IAS also needed to integrate the equipment within a limited back-of-house footprint while developing a solution that aligned with the Zoo’s available project budget.

Custom Industrial Rack System

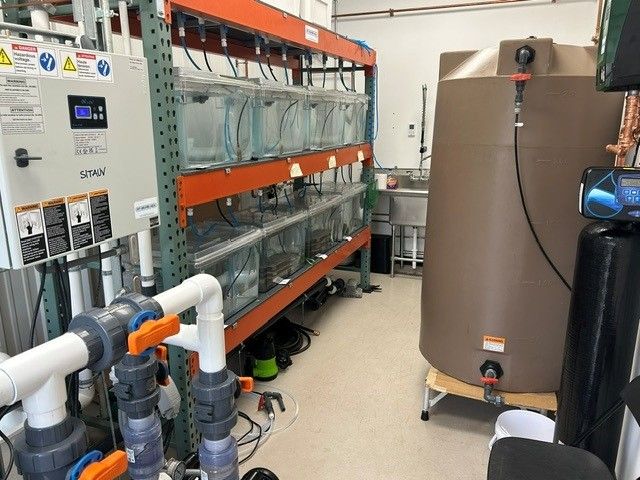

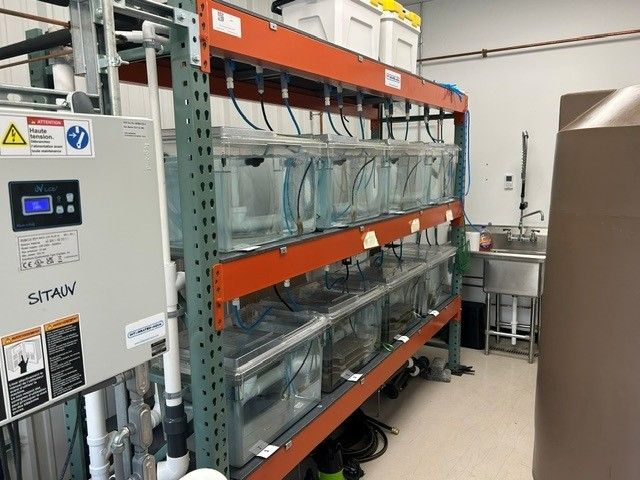

To address both spatial and budgetary requirements, IAS developed a custom industrial rack system specifically for the eight-tank installation.

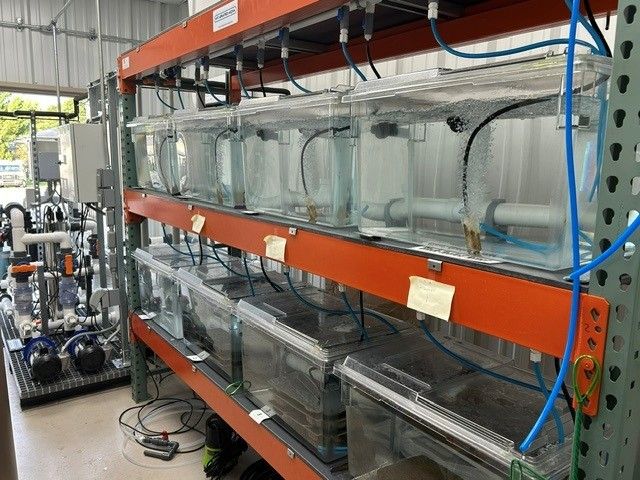

The Integrated Culture Module incorporated the culture tanks, structural support, and associated plumbing into a coordinated rack-mounted assembly. Designing the system around the available space allowed IAS to maximize the functional use of the facility while maintaining access to critical equipment and system components for routine husbandry and maintenance.

The modular rack approach also allowed much of the system to be assembled and preplumbed before delivery, reducing onsite fabrication requirements and simplifying installation.

Integrated Filtration Module

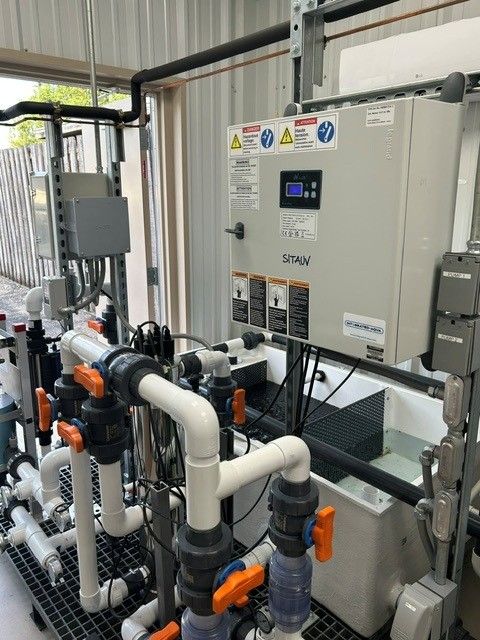

Water treatment is managed through a dedicated Integrated Filter Module engineered to provide multiple stages of filtration, disinfection, circulation, and thermal control within a compact footprint.

The module incorporates:

Together, these components provide centralized management of critical water-quality and environmental parameters while reducing the complexity and footprint of the mechanical installation.

Precise Temperature and Hydraulic Control

Temperature control is a critical consideration for hellbenders, which are adapted to cool freshwater river environments. The combination of an inline titanium heater and dedicated chiller system gives the husbandry team the ability to closely regulate system temperature and maintain stable environmental conditions.

This thermal control can also support seasonal conditioning and other husbandry protocols associated with conservation breeding programs.

The system hydraulics were designed to produce controlled, gentle water movement representative of the riverine environments occupied by hellbenders. Balancing sufficient circulation with appropriate flow characteristics helps create an environment conducive to animal health, natural behavior, and reproduction.

Source-Water Pretreatment

In addition to the recirculating LSS, IAS provided a dedicated source-water pretreatment system to improve incoming water quality before it enters the culture system.

The pretreatment package includes a commercial reverse osmosis system, catalytic carbon filtration, and an intelligent booster pump. Together, these components provide a controlled and consistent source-water supply while reducing unwanted constituents that could affect water chemistry or animal health.

Integrating source-water treatment with the primary LSS provides the Zoo with greater control over both the incoming water supply and the recirculating aquatic environment—an important consideration for sensitive conservation, propagation, and research applications.

Designed for Efficient Installation and Operation

Back-of-house zoo, aquarium, and aquatic research facilities frequently present challenges related to equipment footprint, infrastructure, and installation access. IAS addressed these constraints through a modular approach that integrated the culture system, filtration equipment, plumbing, and controls into coordinated assemblies.

Major components were preplumbed and packaged prior to delivery, reducing field fabrication and helping streamline onsite installation. This approach also creates a more organized mechanical system that supports accessibility, maintenance, and long-term operation.

Engineering Life Support Around the Biology

The Louisville Zoo hellbender project demonstrates the value of developing aquatic life support systems around the specific biology of the species, husbandry objectives, facility constraints, and available project resources.

By integrating a custom eight-tank culture rack, mechanical and biological filtration, MBBR technology, UV sterilization, precise heating and chilling, circulation, and source-water pretreatment, IAS delivered a comprehensive system designed to support the Zoo’s hellbender conservation and breeding program.

For zoos, aquariums, universities, and aquatic research institutions, this project represents the type of application-specific engineering required when environmental consistency, operational reliability, and species-specific conditions are essential to program success.

Integrated-Aqua is proud to support the Louisville Zoo’s hellbender conservation efforts and looks forward to continuing to provide specialized aquatic life support solutions for future conservation and research programs.

Project Details

CLIENT
LOCATION

Louisville, KY, USA

PROJECT TYPE

Commercial Aquatic Exhibits

PRODUCTS
