Hypoxia Research System

Precision Low-Oxygen Control for Freshwater and Saltwater Research

Integrated-Aqua designed, built, and installed specialized freshwater and saltwater aquatic research systems developed for controlled hypoxia studies. The project required precise, repeatable management of dissolved oxygen across multiple independent research tanks while supporting both short- and long-term experimental protocols.

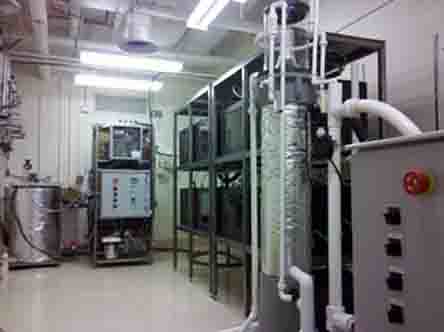

Two independent eight-tank, rack-mounted research systems were supplied, each combining recirculating filtration, automated low-oxygen control, and computerized water-quality monitoring into a complete research platform.

The Research Challenge

Hypoxia research requires researchers to create and maintain extremely low dissolved oxygen concentrations without introducing instability that could affect experimental results.

The systems needed to maintain independent oxygen conditions in each aquarium, support continuous operation over extended studies, and provide researchers with real-time access to water-quality data.

A key objective was also to reduce dependence on consumable gases commonly associated with conventional nitrogen displacement systems.

The Integrated-Aqua Solution

Integrated-Aqua engineered a customized vacuum degassing system capable of maintaining dissolved oxygen concentrations as low as 0.7 mg/L consistently within individual research tanks.

Rather than relying on traditional nitrogen gas displacement, the system uses vacuum technology to remove dissolved gases from the water and create a continuous supply of deoxygenated water for controlled delivery to the research aquaria.

This approach enables researchers to independently establish and maintain defined oxygen conditions across multiple experimental treatments while supporting both freshwater and saltwater applications.

Computer-Controlled Hypoxia Management

A computer-controlled process was developed specifically for the project to continuously regulate dissolved oxygen concentrations within each research tank.

The system monitors water-quality conditions in real time, automatically adjusts the supply of deoxygenated water, and maintains stable oxygen tensions over short- or long-duration experiments.

Integrated monitoring and data logging also allow researchers to record, graph, and remotely review experimental conditions in real time, providing greater visibility into system performance and research data.

A More Efficient Approach to Hypoxia Research

Using vacuum degassing instead of nitrogen gas displacement provides a significant operational advantage for long-term experiments by reducing reliance on consumable gas supplies.

The result is a highly controlled hypoxia research platform capable of producing an effectively continuous supply of deoxygenated water while maintaining precise and repeatable low-oxygen conditions.

The project demonstrates how custom aquatic life support engineering can expand experimental capabilities by combining precision environmental control, automated monitoring, recirculating filtration, and advanced vacuum technology into a research-focused system.

Project Details

PROJECT TYPE

Aquatic Research

PRODUCTS

Project Gallery
