Ocean Acidification Research System

Precision-Controlled Saltwater Systems for Ocean Acidification Research

Integrated-Aqua designed, built, and installed a complete saltwater aquatic research laboratory developed specifically for investigations into ocean acidification. The facility combines high-density culture capacity with precise environmental control, giving researchers the ability to independently manipulate key water-quality and atmospheric variables across multiple experimental systems.

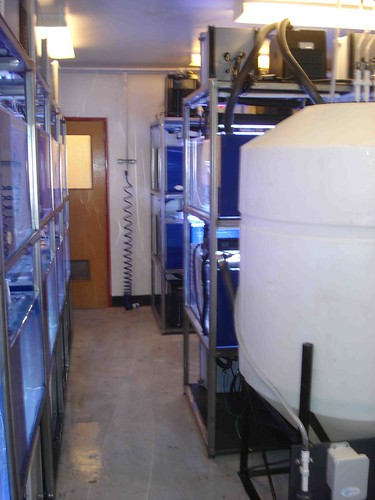

At the center of the laboratory is a custom Integrated Culture Module (ICM) consisting of 24 independent 60-gallon research aquaria, engineered to maximize experimental capacity within an exceptionally limited laboratory footprint.

The Research Challenge

Ocean acidification research requires precise, repeatable control over environmental variables while maintaining independence between experimental treatments.

The laboratory needed to accommodate a large number of individual aquaria in a very small space while allowing researchers to independently monitor and control pH, temperature, CO₂ concentration, and lighting in each system. Reliable saltwater delivery and integrated filtration were also required without adding unnecessary complexity or consuming valuable laboratory space.

The Integrated-Aqua Solution

Integrated-Aqua developed a custom stacked aquarium rack configuration that provides 24 independent research environments within a compact footprint.

Each 60-gallon aquarium is individually monitored for pH and temperature and provides independent control of temperature, CO₂ concentration, and lighting. This architecture allows researchers to establish multiple experimental conditions and replicates while maintaining precise control over each individual aquarium.

The custom aquaria also incorporate integrated filtration directly within each unit, creating self-contained research environments and reducing dependence on shared filtration infrastructure.

Precision Gas Control

A key innovation of the facility is Integrated-Aqua’s Integrated Gas Control System (GCS), developed to provide laboratory-grade gas management and blending.

The GCS precisely controls gas delivery to achieve defined CO₂ concentrations within individual research aquaria, providing the level of repeatability required for controlled ocean acidification experiments. Researchers can manipulate CO₂ exposure independently across experimental treatments while monitoring the resulting changes in aquarium conditions.

Integrated Saltwater Supply

The laboratory also includes an on-demand saltwater supply system, providing researchers with a reliable source of prepared seawater whenever required.

Combined with independent filtration and environmental control at each aquarium, the centralized saltwater supply simplifies routine research operations while supporting consistent experimental protocols.

Built for Controlled Marine Research

The completed facility provides researchers with a compact, highly configurable platform for studying the biological effects of changing ocean chemistry.

By integrating 24 independent aquaria, precision CO₂ gas control, temperature and pH monitoring, programmable lighting, individual filtration, and on-demand saltwater delivery, Integrated-Aqua created a purpose-built research environment designed for repeatability, flexibility, and efficient use of laboratory space.

The project demonstrates how custom aquatic life support engineering can give marine researchers the precise environmental control required to investigate ocean acidification and other complex changes affecting marine ecosystems.
