UBC Aquatic Research Facility
Project Description
The Biological Sciences Complex at the University of British Columbia (UBC) was renovated to create a flexible, world-class research environment for the Departments of Botany and Zoology. The project consolidated UBC’s aquatic animal holding facilities into a 19,300-square-foot Aquatic Research Laboratory (ARL) featuring 24 aquaria laboratories and 10 controlled-environment rooms supporting both freshwater and seawater research.
Integrated-Aqua was selected as the Aquaculture Systems Designer & Supplier, providing design coordination, equipment supply, startup, commissioning, and operator training for the facility’s advanced aquatic life support systems.
The Research Challenge
The ARL was designed to support a broad range of fisheries, aquaculture, and aquatic ecology research, including studies focused on salmon conservation, stock restoration, and sustainable fisheries management.
The facility required numerous independently operated systems capable of supporting different species, stocking densities, and experimental conditions while maintaining precise control over water quality, temperature, disinfection, oxygenation, and system performance.
The Integrated-Aqua Solution
Integrated-Aqua collaborated with the owner, contractors, architects, engineers, and specialty subcontractors to deliver an integrated design-build-supply solution for the facility.

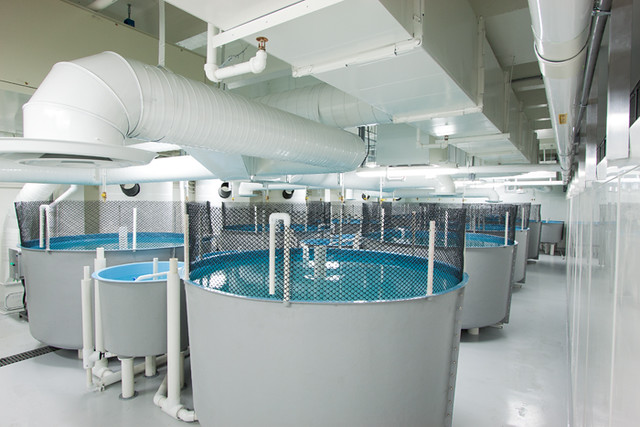

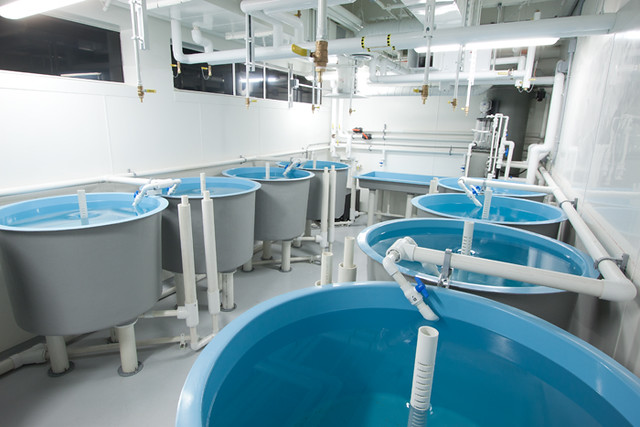

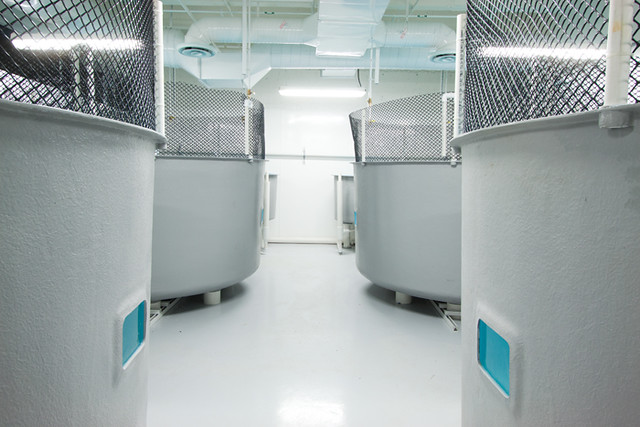

The project included seven 3,000-gallon high-density recirculating aquaculture systems and six 2,000-gallon low-density recirculating systems, providing researchers with flexible infrastructure for a wide range of experimental applications.

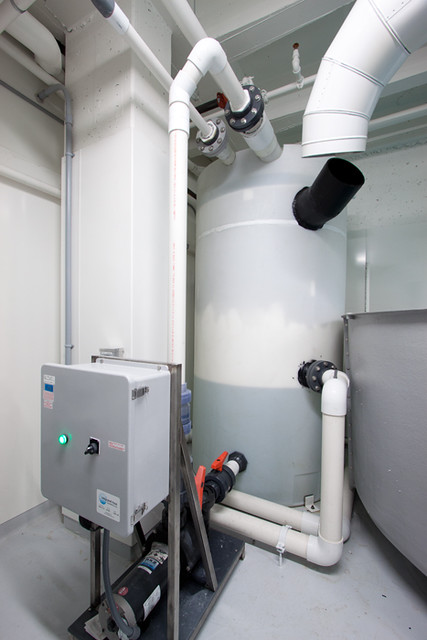

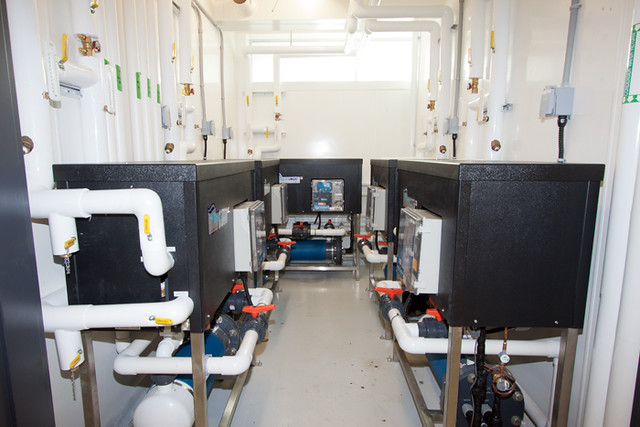

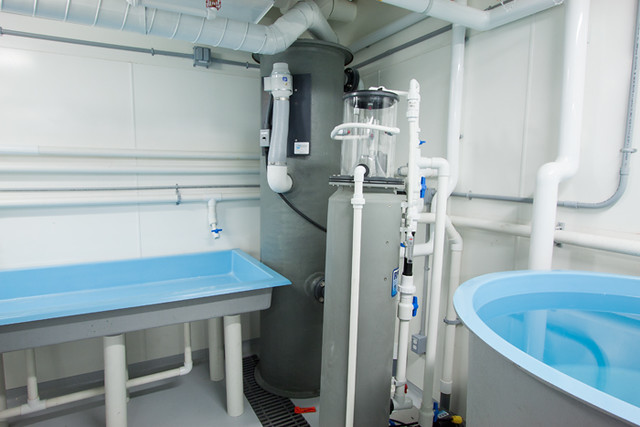

Applied RAS technologies included computer-controlled PermaBead™ solids removal, low-head biofiltration and degasification, UV and ozone disinfection, foam fractionation, and integrated heating and cooling.
Facility-Wide Life Support Infrastructure

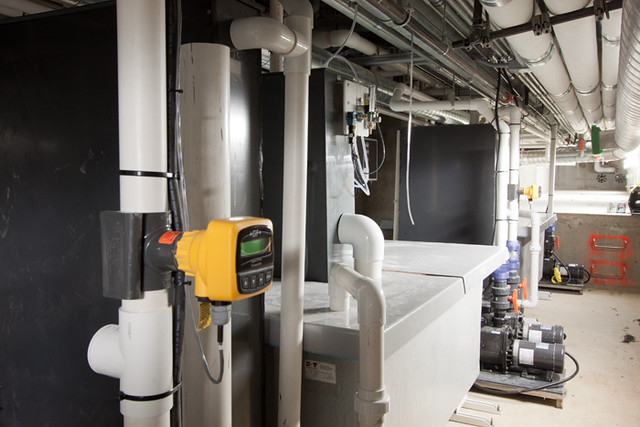

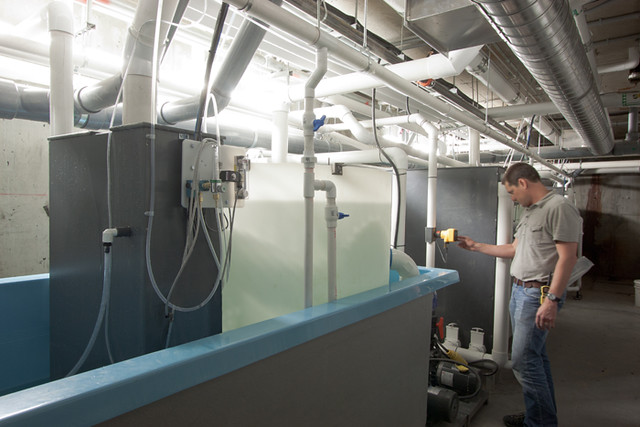

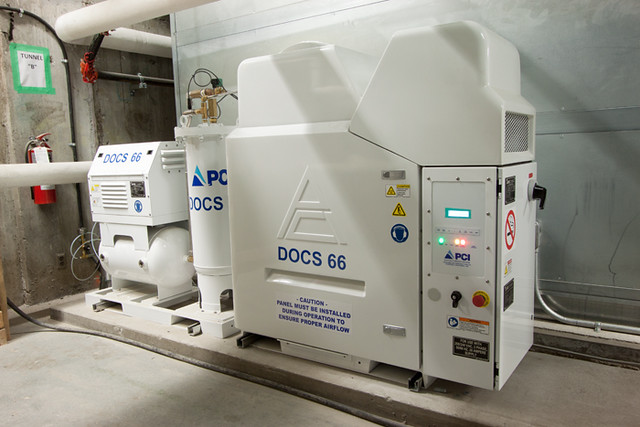

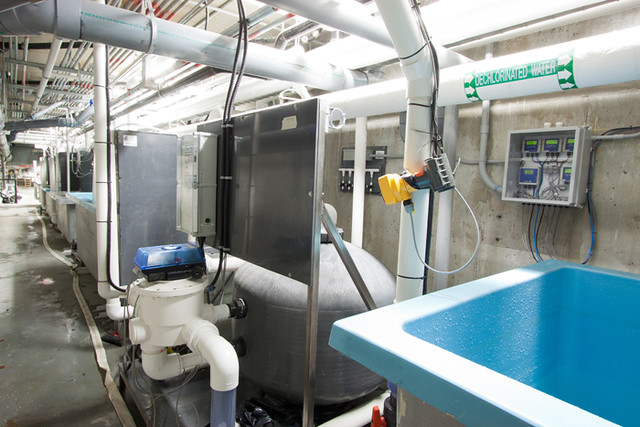

Supporting systems included VSA oxygenation, wastewater treatment, and automated water-quality monitoring, control, and alarm systems across the aquatic facility.
This integrated infrastructure provides researchers and facility operators with centralized visibility and control while supporting stable environmental conditions across multiple independent research systems.
Custom Automated Backwash Control

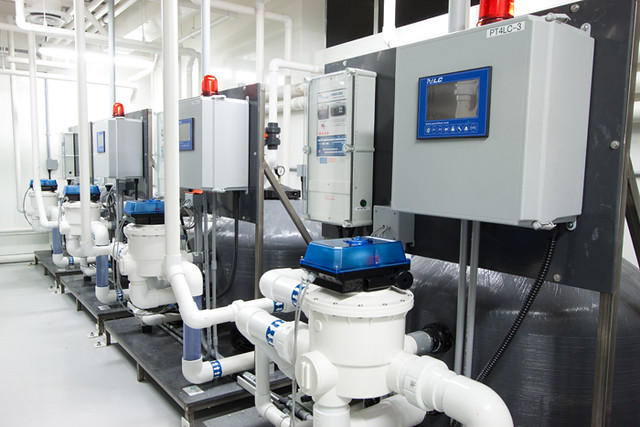

A custom PLC-based backwash control system was engineered to provide single-point control of pumps, valves, and actuators across multiple automatic backwash systems.
The control architecture supports a total of 13 independent systems distributed across two floors of the Biological Sciences Building, simplifying operation and helping facility staff efficiently manage complex filtration processes from a centralized interface.
Built for Long-Term Research
The UBC Aquatic Research Laboratory demonstrates how advanced recirculating aquaculture technology can be integrated into a large, multidisciplinary research facility.
By combining flexible freshwater and seawater systems, high-performance filtration, disinfection, oxygenation, automation, and centralized controls, Integrated-Aqua helped create a research platform designed to support UBC’s work in fisheries science, aquatic ecology, conservation, and sustainable resource management for years to come.
Project Details
CLIENT
University of British Columbia
LOCATION
Vancouver, BC, Canada
PROJECT TYPE
Aquatic Research
