Integrated Culture Modules

Space-efficient, rack-mounted aquaria systems tailored for aquatic research and education

Integrated Culture Modules (ICM) from IAS are a complete series of pre-engineered multi-tank, rack mounted aquatic research systems designed for flex research purposes. User configurable tank combinations and specialized environmental control systems offer researchers ultimate flexibility in their lab design.

Aquatic Research Systems Brochure

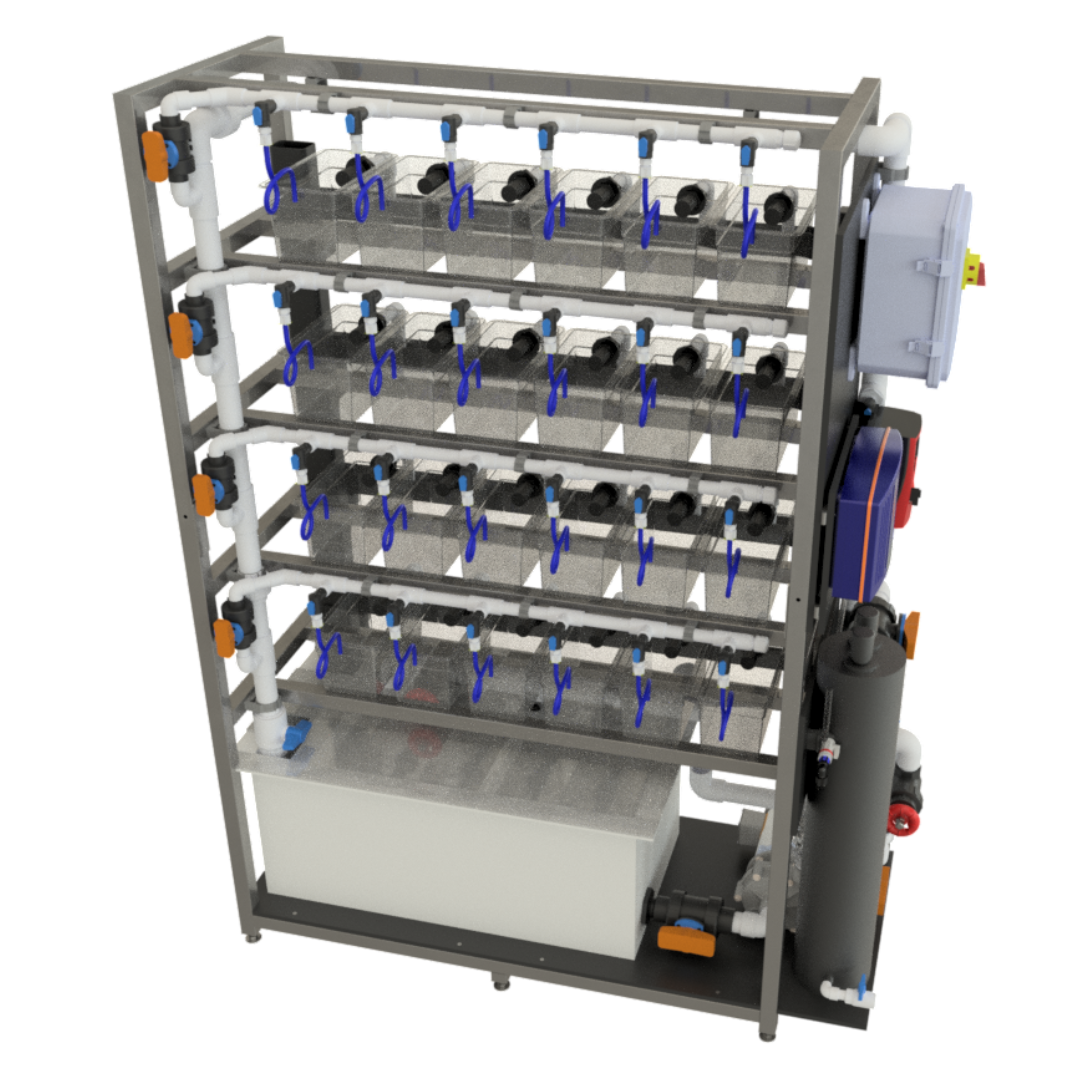

ICM-052

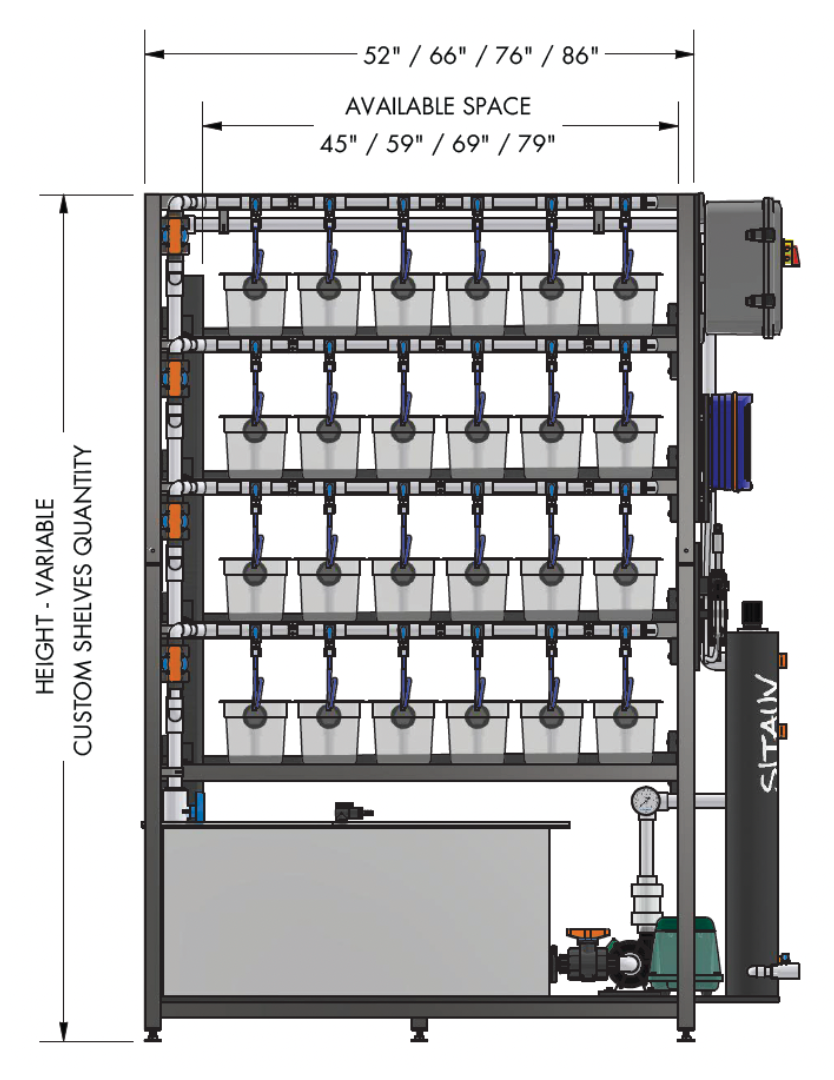

Tank Available Width: 45”
Footprint: 24” x 60”
MBBR Volume: 0.75 cu.ft. (Media)
Filter Pad Dimensions: 10” x 18”
HDPE UV with 80W High Output Lamp

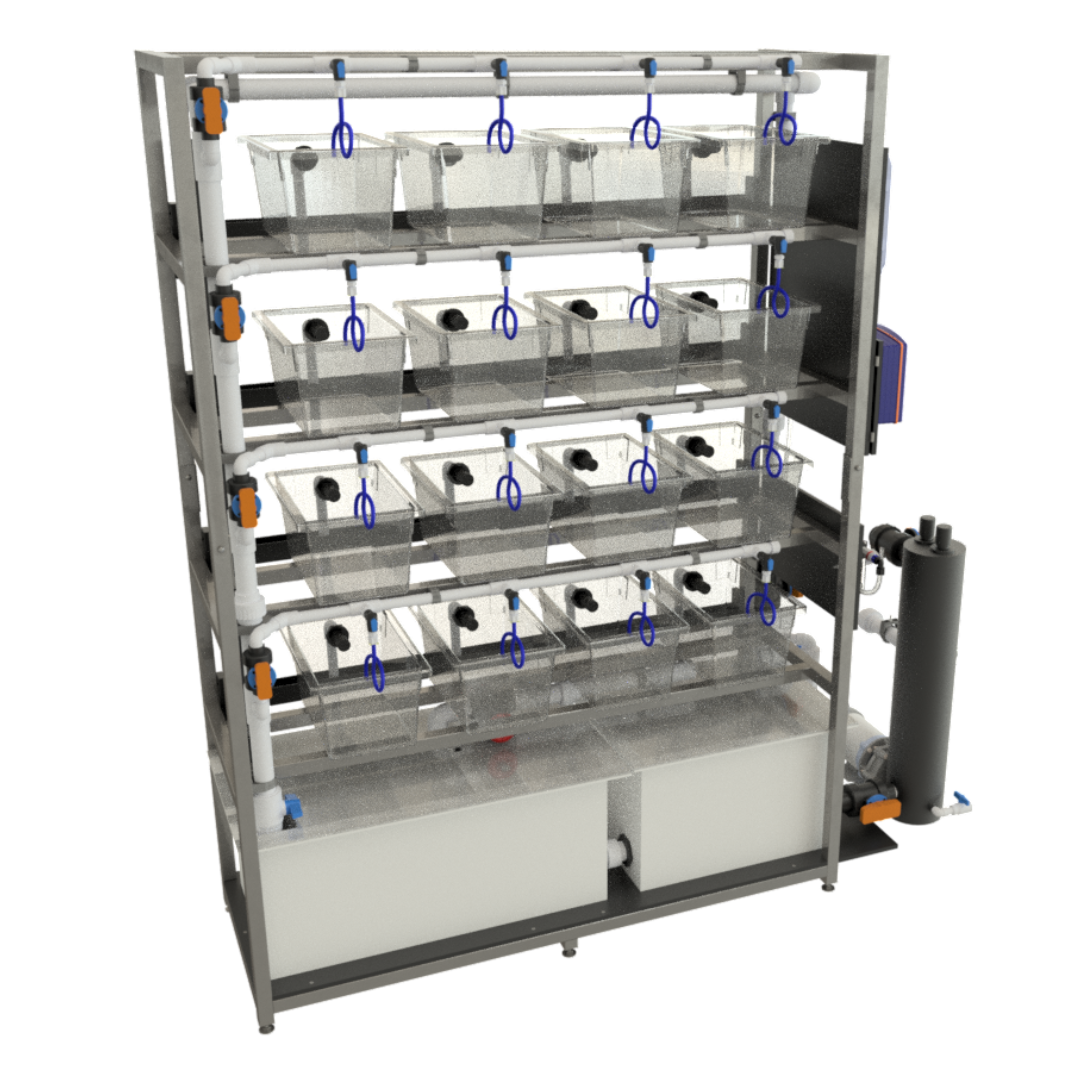

ICM-066

Tank Available Width: 59”
Footprint: 24” x 74”
MBBR Volume: 1.0 cu.ft. (Media)
Filter Pad Dimensions: 12” x 18”
HDPE UV with 80W High Output Lamp

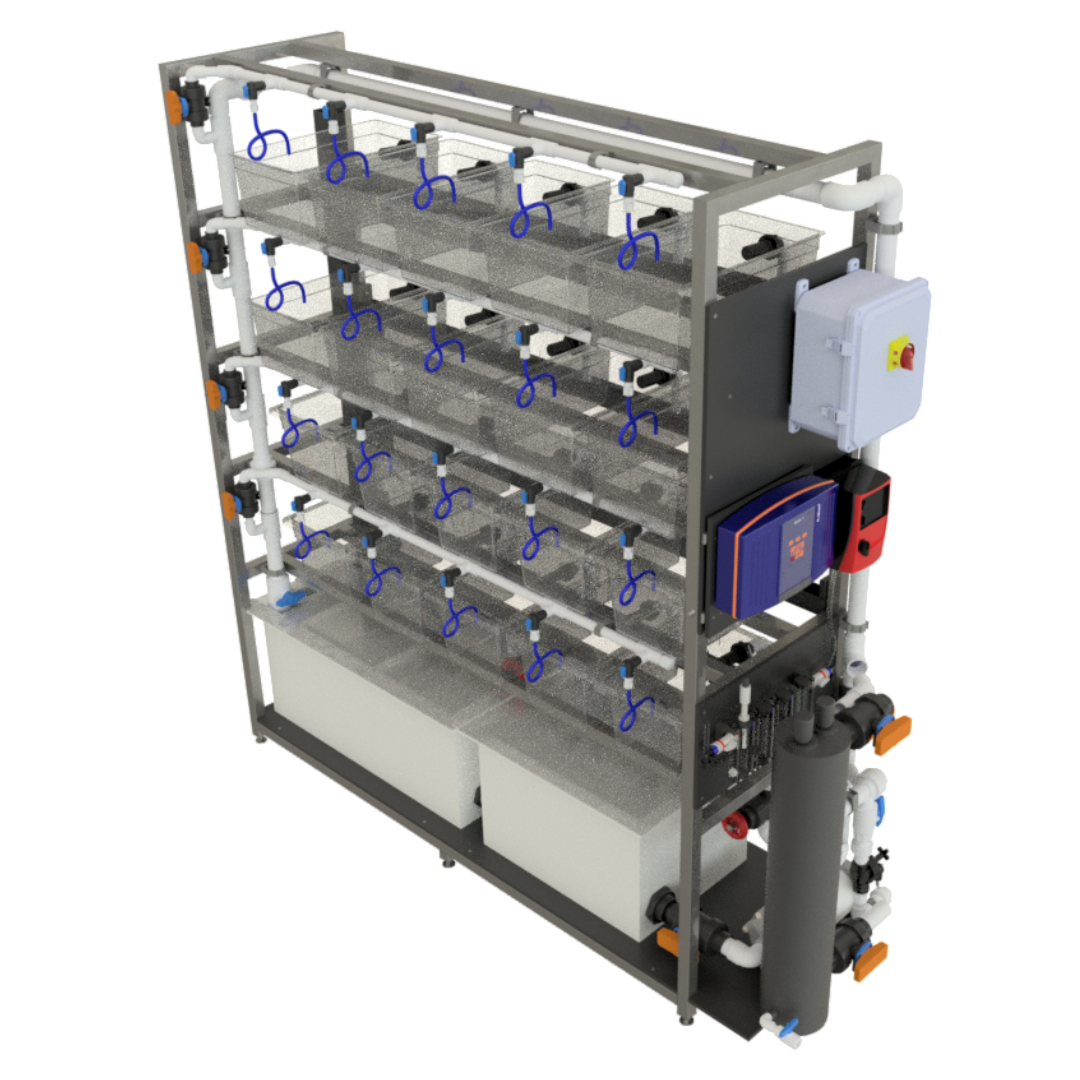

ICM-076

Tank Available Width: 69”
Footprint: 24” x 84”
MBBR Volume: 1.0 cu.ft. (Media)
Filter Pad Dimensions: 12” x 18”
HDPE UV with 2x 80W High Output Lamp

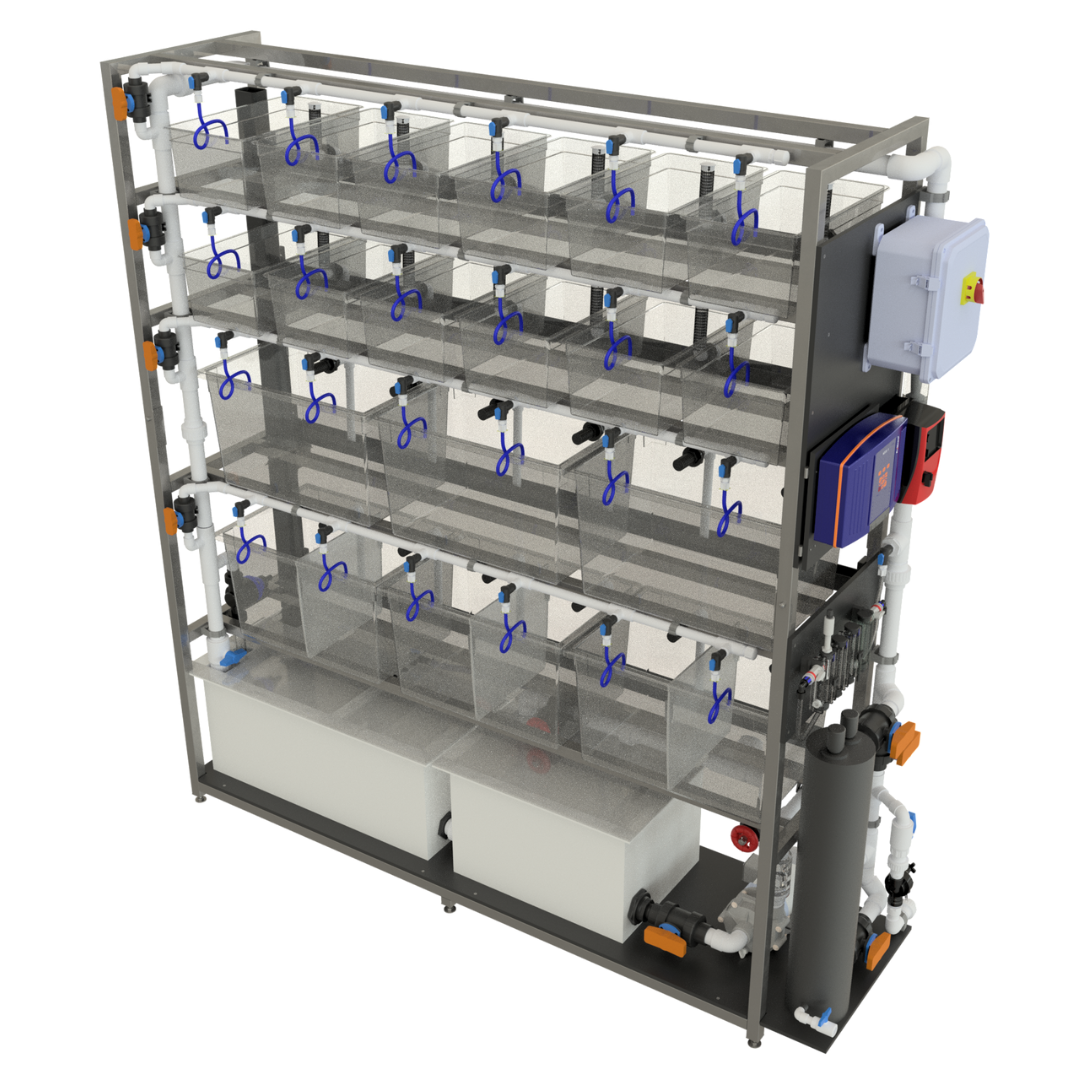

ICM-086

Tank Available Width: 79”
Footprint: 24” x 94”
MBBR Volume: 1.5 cu.ft. (Media)
Filter Pad Dimensions: 16” x 18”
HDPE UV with 2x 80W High Output Lamp

Purpose Built Systems for Research

Modular. Split rack design makes tight lab spaces accessible and optimizes shipping economy.
Saltwater Compatible. Every system is designed for fresh or saltwater use using only the highest quality materials and modern design features. Saltwater compatibility
High-Performance LSS. Multi-stage recirculating aquatic life support system with easy access for maintenance and built-in safety features.
Superior Biofiltration. High performance, non-crashing BioE moving bed biofilter provides superior water quality for livestock.
Biosecurity. SITA UV sterilizer delivers high-output UVC disinfection for biosecurity from harmful pathogens and disease.

Quiet & Reliable. Non-corrosive mag-drive pump delivers precise flow rates tailored to your System configuration maintaining optimal turnover and oxygen levels.
Wide Range of Tank Options. Full range of culture tank options for every species including polycarbonate, glass, acrylic, fiberglass, polyethylene tanks.
Optional LED Lighting. Full spectrum LED lighting integration available for coral or kelp propagation, photoperiod control, and environment control.
Fully Configurable & Flexible Design. Combine with any combination of tank, filtration, and environmental control option to further your research.
Optional Insulation. Tank and plumbing insulation available for cold water systems.

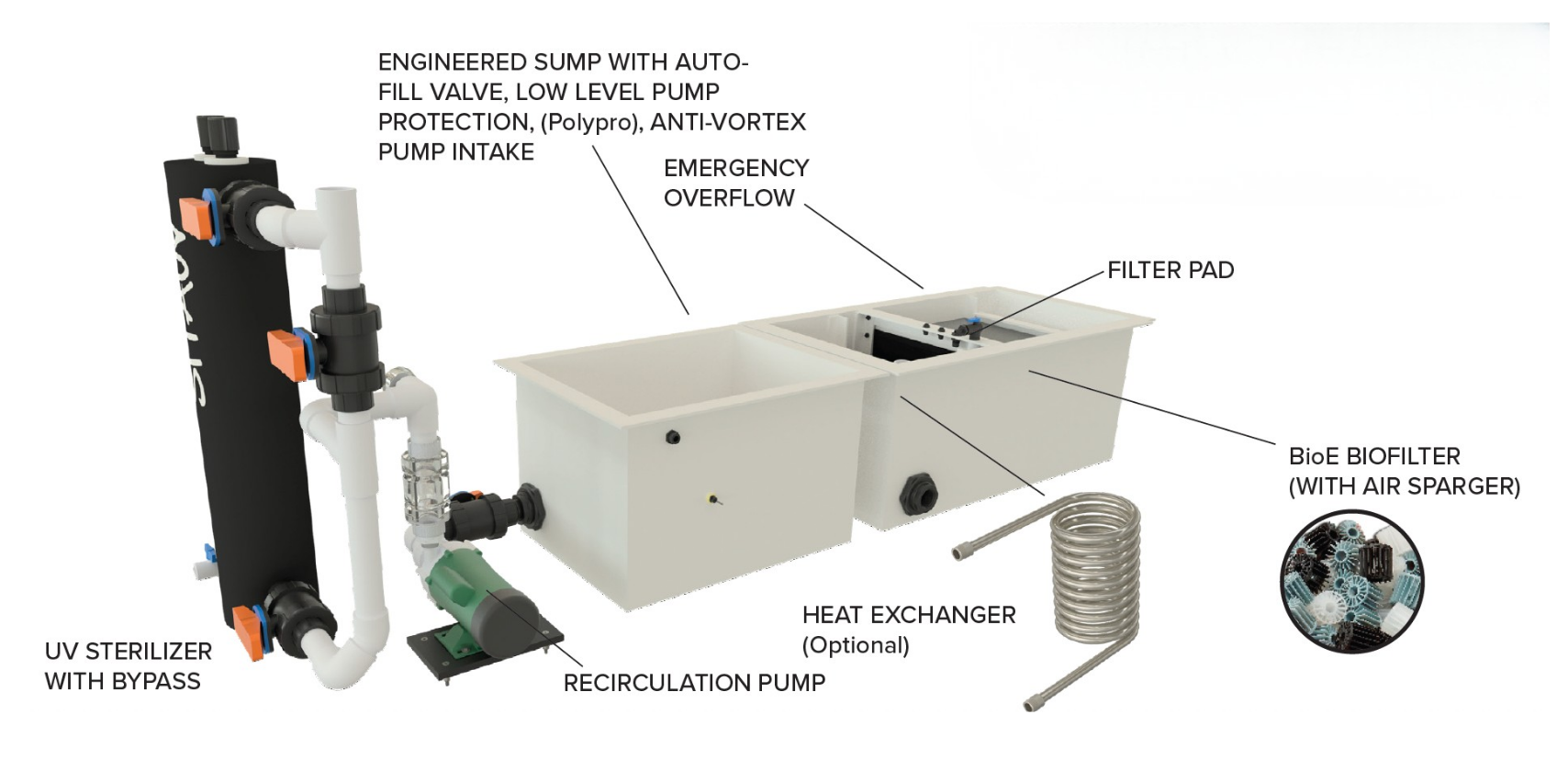

Aquatic Life Support System

Extremely efficient, quiet, and reliable.
Heavy-duty engineered polyethylene sump tank.
Optional insulation for cold water systems.
Automatic makeup water system and overflow drain
UV sterilizer available in 316SS (FW) or HDPE (SW)
Temperature control available

Applications

ICM’s are versatile, turnkey systems designed to support controlled aquatic environments across research, production, and display applications. Their modular, scalable design makes them ideal for facilities requiring precise water quality control, repeatability, and long-term operational reliability.

Aquatic Research Laboratories

Provide highly controlled, repeatable environments essential for experimental accuracy and regulatory compliance.

Aquaculture Facilities

Deliver efficient, scalable culture systems optimized for growth performance, biosecurity, and operational efficiency.

Public Aquariums & Display Systems

Ensure stable water quality and life support reliability for behind-the-scenes holding, quarantine, and exhibit support systems.

Educational & Teaching Labs

Offer safe, flexible, and easy-to-operate systems ideal for hands-on learning and instructional research.

Quality Equipment. Proven Results.

Schedule a consultation today and get a customized solution built to meet your project’s specific needs.
