Integrated Filtration Modules
All-in-one filtration solutions integrating mechanical, biological, and chemical processes for optimal water quality and system performance

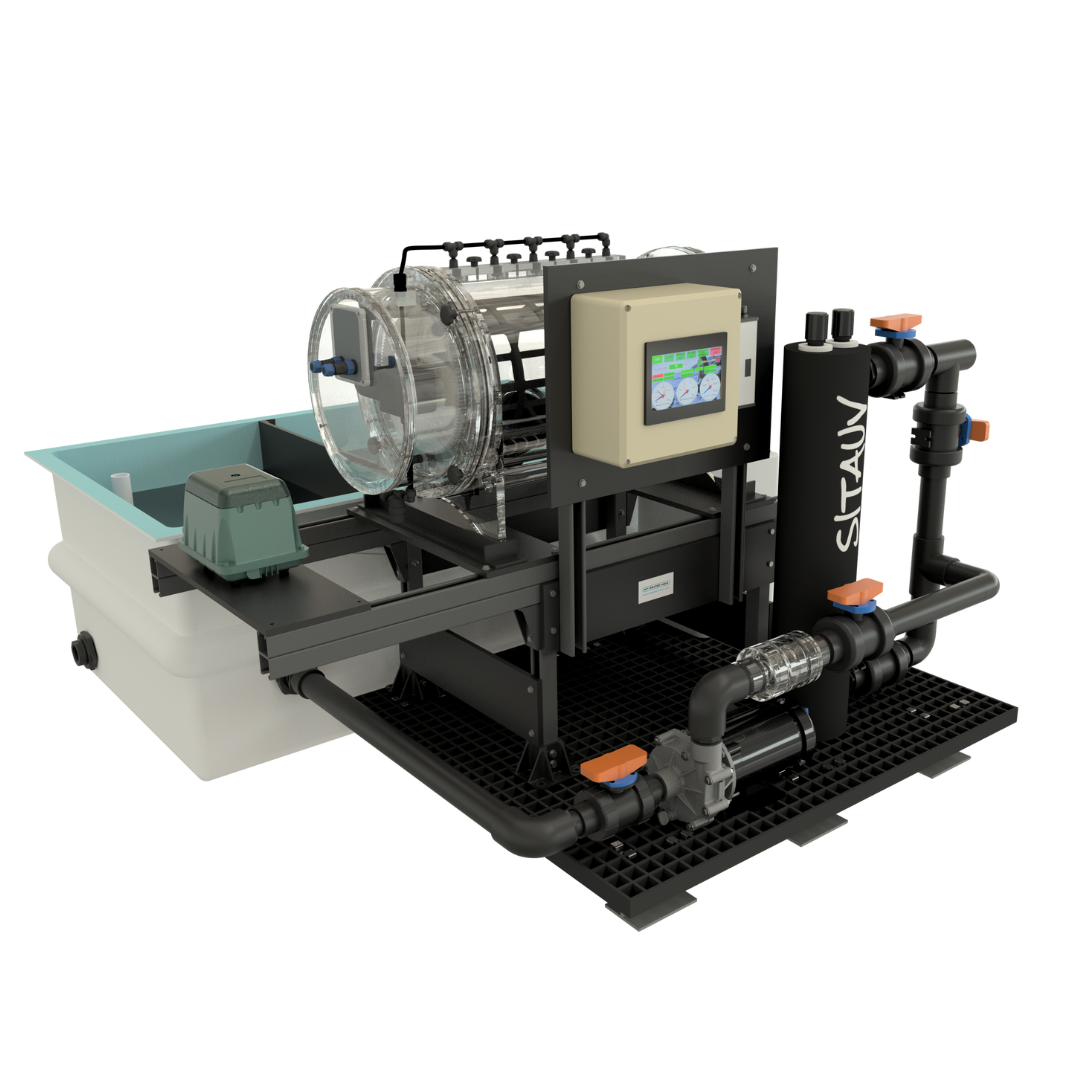

Integrated Filtration Modules (IFM) are advanced, customizable filtration systems that combine multiple treatment stages—such as particle removal, biofiltration, aeration, temperature control, pumping, disinfection, and automation—into one efficient, self-cleaning unit. Engineered for energy and space efficiency, IFM systems deliver ultra-quiet, high-performance operation while reducing labor and operational costs. Designed for versatility and reliability, they can be tailored to meet specific water quality, budget, and system requirements, offering a comprehensive, turnkey solution for aquatic life support applications of any scale.

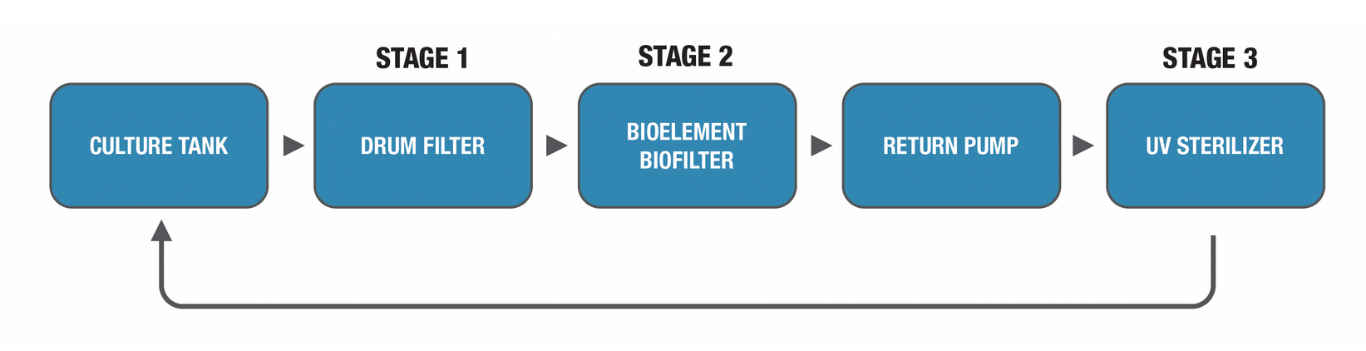

3 Stage Recirculating Filtration System Design

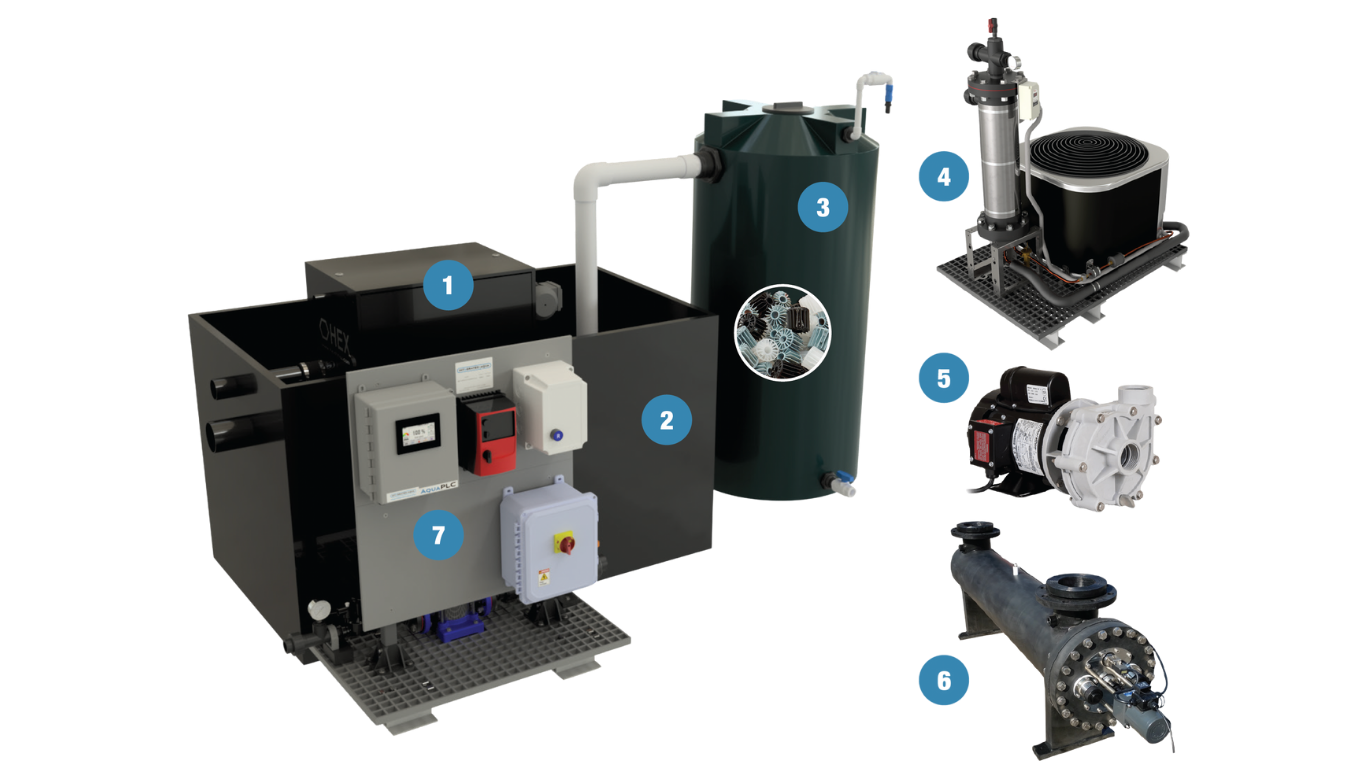

Customizable for a Complete Recirculating System
MECHANICAL FILTRATION
Select from gravity-fed filters including TinyDrum® Filters for smaller systems and X-series HEX drum filters for larger systems. Filter screens from 10 – 1000 microns.
IFM TANK VESSEL
Constructed from heavy-duty non-corrosive materials including welded HDPE plastic and fiberglass reinforced plastic (FRP). Designed with built-in inlets, and internal support.
BIOE SERIES MBBR BIOFILTER
Select from gravity-fed filters including bag filters for smaller systems and X-series HEX drum filters for larger systems. Filter screens from 10 – 1000 microns.
TEMPERATURE CONTROL
Options include immersion grid coils and electric heaters for space savings and efficiency or externally mounted chillers and heat pumps for systems with larger load capacities.
PUMP OPTIONS
Quiet, low-head pumps are used for optimal electrical efficiency and low maintenance operation. Select either submersible pumps for the most compact footprint or from a wide range of externally mounted end-suction centrifugal pumps to meet specific project requirements.
DISINFECTION
UV sterilizers are added for disinfection of water-borne pathogens and to prevent the spread of diseases.
AUTOMATION, MONITORING & CONTROLS
A complete range of automation, water quality monitoring, and controls are available with INTEGRATED-AQUA™ Filter Modules. Choose from auto backwash for Drum filters, water quality sensors, makeup water systems, and more.
Applications
Engineered for compact system needs, Integrated Filter Modules are fully automatic, non-corrosive, compact, and economical solids filters ideal for a range of aquatic life support applications.
